Parametric Boxes

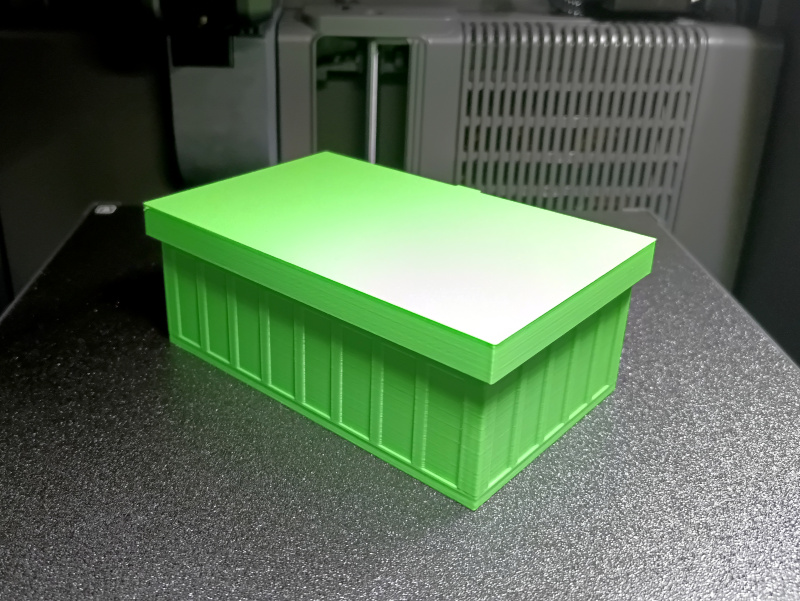

A ready-to-print storage box, pulled straight from the parametric system available to members — body, lid, and a snap-fit skirt, no supports, no guesswork on tolerances.
What It Is
This is a free sample pull from the Parametric Boxes module: one fixed-size box, generated and locked at the dimensions on this page so you can download it, print it, and see exactly how the system behaves before you commit to anything.
It isn’t a stripped-down demo. It’s the same engine members use to generate their own sizes — just handed to you at one specific configuration, ready to slice.
Design Features
- Skirt-style fit. The lid doesn’t just rest on top — it seats into a skirt built into the body, so it stays aligned and closed without clips, magnets, or a separate fastening step.
- Rectangular body with an internal divider. One divider runs along the X axis, splitting the interior into two compartments without adding a second print or a separate part to align.
- Corrugated wall pattern. The vertical-wave relief on the walls isn’t decoration — corrugation adds structural rigidity along the print layers, the same principle used in cardboard and sheet-metal paneling, scaled down to a 3D-printed wall.
- Tolerances already solved. Wall thickness, lid thickness, and the skirt’s fit tolerance are tuned so the lid goes on snug on a well-calibrated printer — you’re not guessing at clearances on your first print.
Technical Specifications
| Length | 120 mm |
|---|---|
| Width | 74 mm |
| Body Height | 46 mm |
| Wall Thickness | 2 mm |
| Lid Thickness | 2 mm |
| Skirt Height (fit) | 8 mm |
| Fit Tolerance | 0.2 mm |
| Dividers (X axis) | 1 |
| Dividers (Y axis) | 0 |
| Pattern Density | 8 |
|---|---|
| Relief Depth | 0.6 mm |
| Cell Size (relative) | 0.75 |
| Solid Frame Around Pattern | 4.0 mm |
Who It’s For
This sample is built for two kinds of people: makers who are just starting out in 3D printing and want a part that’s genuinely dialed in — not another file pulled off a random repository with tolerances nobody checked — and entrepreneurs who need something simple but precise, at a size that actually matches what they’re packaging, displaying, or shipping.
If “close enough” worked for you, you wouldn’t be reading a spec sheet. This page exists because the measurements matter.
Important: this sample ships at the exact dimensions listed above — 120 × 74 × 46 mm, one divider on the X axis. If your project needs a different size, a different divider layout, or a different wall pattern, that’s exactly what the full Parametric Boxes module is built to solve.
Get This Model
Download the free STL below, no account required. When you’re ready for your own size, your own dividers, or your own wall pattern, the full module is one click away.
Download Free Sample (ZIP)
Want your own size, text or shape? Members customize every parameter.
